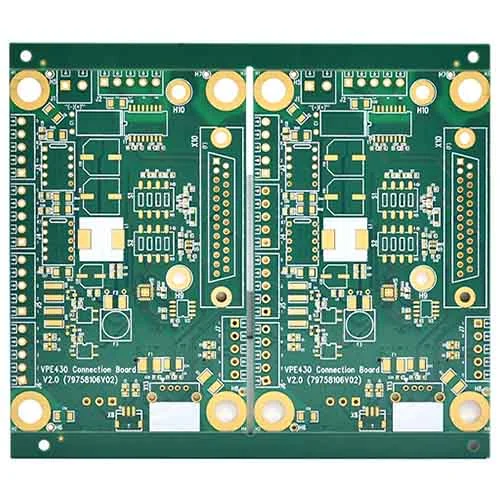

TG150 PCB Circuit Board
As one of professional manufacturer, Viafull would like to provide you high quality TG150 PCB Circuit Board. And we will offer you the best after-sale service and timely delivery.
Send Inquiry
Product Description
TG150 PCB refers to the PCB developed with tg150 board. TG usually stands for glass transition temperature, which refers to the stable and reversible transformation of amorphous materials from a solid "glassy" state to a rubbery and viscous state when a temperature higher than expected is applied. While TG generally proves to be lower than the melting temperature of the corresponding crystalline material state.
Glass transition temperature materials usually behave as flame retardant materials that deform/melt within a specific temperature range. TG150 PCB is a medium TG material because its temperature range is higher than 130 degrees Celsius to 140 degrees Celsius, but lower than 170 degrees Celsius or higher. Please note that the higher the TG of the substrate (usually epoxy resin), the more stable the PCB will be.
Data Sheet
| Name: | TG150 PCB circuit board |
| Material: | TG150 |
| Number of layers: | four layers |
| Drilling diameter: | 0. 2mm |
| Minimum line width: | 0. 08mm |
| Minimum line spacing: | 0. 1mm |
| Process: | immersion gold |
| Features: | Compared with TG130, the heat resistance, moisture resistance, chemical resistance, stability and other characteristics of PCB printed board will be improved |
