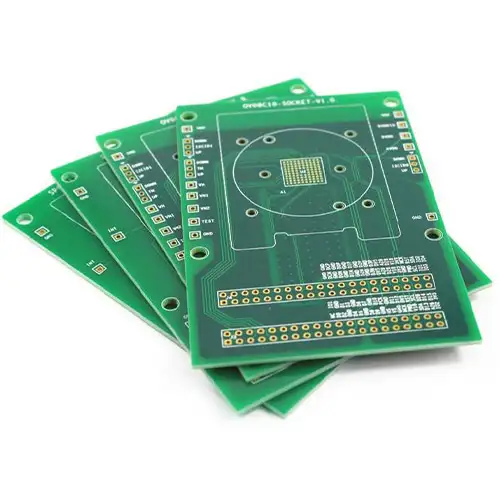

Cordless Vacuum Cleaner Circuit Board

Viafull is a professional China Cordless Vacuum Cleaner Circuit Board manufacturer and supplier, if you are looking for the Cordless Vacuum Cleaner Circuit Board, consult us now! When the vacuum cleaner is powered on, the motor directly drives the fan to rotate at high speed, and the fan impeller drives the air to be discharged out of the casing at a very high speed. At this time, a partial vacuum is formed in front of the fan, which creates a high negative pressure difference between the inside of the vacuum cleaner and the outside world. Under the action of this negative pressure difference, the dust-containing gas suction nozzle next to it continuously replenishes water to the fan, and through the suction nozzle and pipe, the air full of dust and dirt is sucked into the dust collection chamber of the vacuum cleaner, and the dust and dirt are filtered to remain in the dust collection chamber. The filtered clean air is discharged from the air outlet behind the fan and motor and sent back to the room to achieve the purpose of dust collection.

The function of the vacuum cleaner circuit is to control the on and off of the motor. The motor of the vacuum cleaner has single speed, double speed and stepless speed regulation. The motor speed regulation can be achieved through the switch circuit and the electronic speed regulation circuit.
