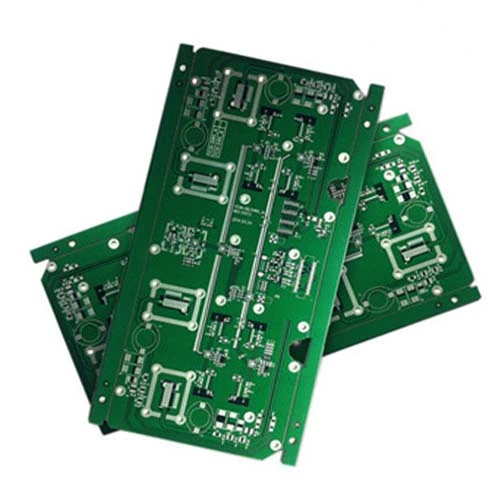

Sided Industrial Control PCB Board

Industrial control product PCB: PCB circuit board for controlling the normal operation of electrical equipment

1. Industrial control dedicated or general circuit board, the bottom circuit is completed, and IO is reserved. After purchasing the industrial control circuit board, connect the reserved input and output ports on the circuit board to the user's own equipment, such as motors. Solenoid valves, sensors to complete the functions you want to complete.

2. There are dedicated boards and general boards. Dedicated circuit boards are circuit boards designed specifically for a certain function, such as temperature control circuit boards. After purchase, the input port is connected to the thermocouple, and the output port is connected to the heating contactor or solid-state relay to control the heating device to complete temperature control and current flow. Control panel, motion control panel, etc.

3. General control board, most of which can be programmed, through the user's own secondary development, to complete specific functions, and has a wide range of uses. For example, PLC is a general industrial control board. After the user writes the program and compiles the input, various functions can be completed. Digital input, analog input port, high-speed counter port, digital output port, analog output port, some also have communication functions.
