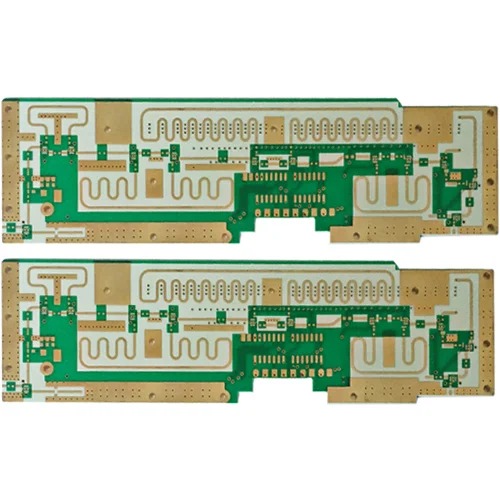

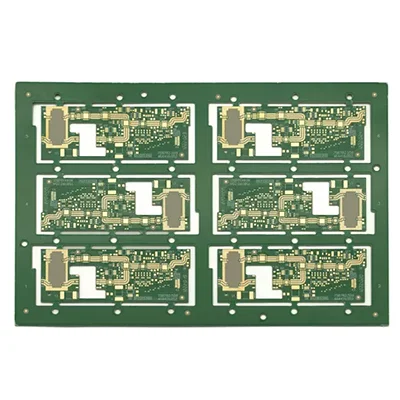

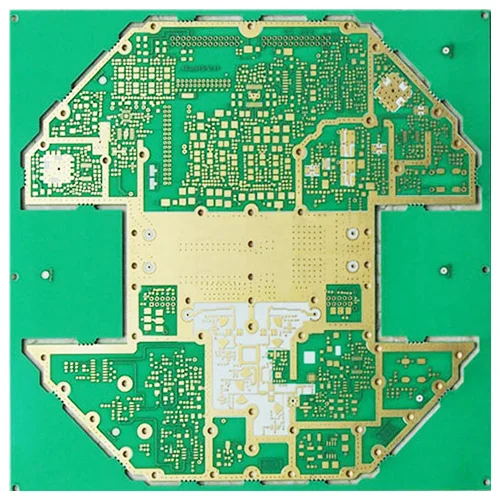

Rogers RO4003C High Frequency PCB Board

RO4003C™ Laminates

Rogers RO4003C material is a proprietary woven glass reinforced hydrocarbon/ceramic that has the electrical properties of PTFE/woven glass and the manufacturability of epoxy/glass.

RO4003C laminates are available in multiple configurations with 1080 and 1674 fiberglass styles, all meeting the same laminate electrical performance specifications. RO4003C laminates offer tightly controlled dielectric constant (Dk) and low loss while using the same processing methods as standard epoxy/glass, but at a fraction of the cost of traditional microwave laminates. Unlike PTFE-based microwave materials, no special through-hole treatments or handling procedures are required.

RO4003C material does not contain bromine and does not meet the UL 94 V-0 rating. For applications or designs that require a UL 94 V-0 flammability rating, RO4835™ and RO4350B™ laminates do meet this requirement.

Features

Dk of 3. 38 +/- 0. 05

Dissipation factor of 0. 0027 at 10 GHz

Low Z-axis thermal expansion at 46 ppm/°C

Benefits

Ideal for multi-layer board (MLB) construction

Low manufacturing cost in processes such as FR-4

Designed for high-volume, performance-sensitive applications

Competitively priced

Data Sheet
