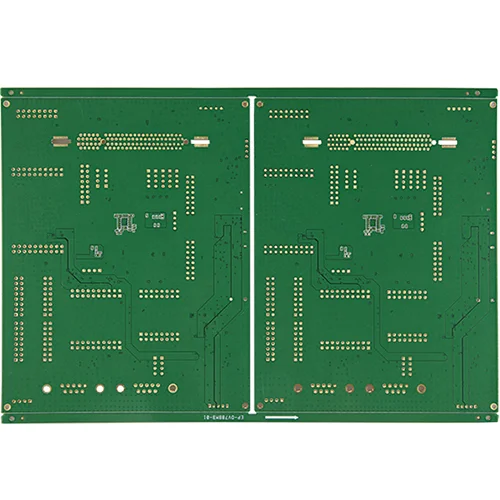

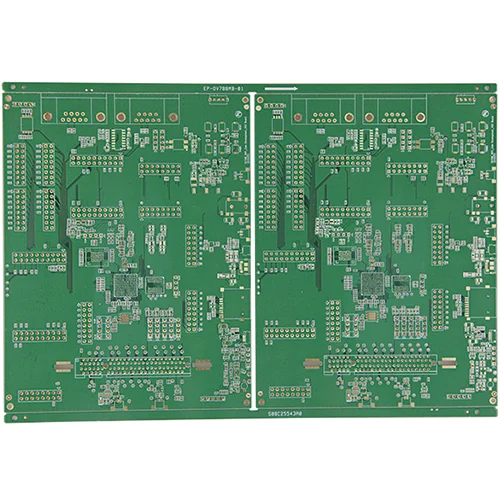

Driving Recorder HDI PCB

What is HDI PCB?

Viafull invites you to visit our factory to purchase the newest, best-selling, affordable, and high-quality Driving Recorder HDI PCB. We are looking forward to working with you. High Density Interconnect (HDI) is simply a PCB with more interconnects in a minimal footprint. This has led to miniaturization of the board. Components are placed closer together, and board space is significantly reduced, but functionality is not compromised. More precisely, PCBs with an average of 120 to 160 pins per square inch are considered HDI PCBs. HDI designs combine dense component placement with universal routing. HDI popularized microvia technology. Create denser circuits by implementing microvias, buried vias, and blind vias. Reduce copper drilling in HDI designs.

What are the advantages of HDI PCBs?

Extraordinary Versatility: HDI boards are ideal when weight, space, reliability, and performance are primary concerns.

Compact Design: A combination of blind, buried, and microvias reduces board space requirements.

Better Signal Integrity: HDI utilizes via-in-pad and blind via technology. This helps keep components close to each other, thereby reducing signal path lengths. HDI technology improves signal quality by removing the via stubs, which reduces signal reflections. Hence, it significantly improves signal integrity due to shorter signal paths.

High Reliability: The implementation of stacked vias makes these boards a super barrier against extreme environmental conditions.

Cost Effectiveness: The functionality of a standard 8-layer through-hole board (standard PCB) can be reduced to a 6-layer HDI board without compromising on quality.

Data Sheet
