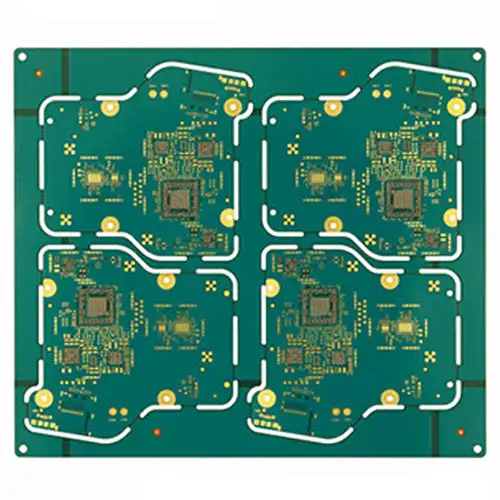

10-layer 3-level HDI PCB
Viafull is 10-layer 3-level HDI PCB manufacturer and supplier in China. We can provide professional service and better price for you. If you interested in products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.
Send Inquiry
Product Description
Technical Features:
50 Ω antenna, 90Ω and 100Ω differential impedance
Viafull is a professional 10-layer 3-level HDI PCB manufacturer and supplier in China, you can rest assured to wholesale and customized 10-layer 3-level HDI PCB from our factory and we will offer you the best after-sale service and timely delivery.
Applications:
Mobile phones, tablets, ultrabooks, e-readers, MP3 players, GPS, portable game consoles, digital cameras, cameras, LCD TVs, POS terminals, HDI PCBs are widely used to reduce the weight and overall size of products, as well as to improve the electrical performance of devices. High-density PCBs are often found in mobile phones, touch screen devices, laptops, digital cameras, and 4G network communications. HDI PCBs also play an important role in medical devices as well as various electronic aircraft components. The possibilities of high-density interconnect PCB technology seem almost endless.
Data Sheet
| Name: | 10-layer 3-stage HDI PCB |
| Number of layers: | 3+4+3 |
| Sheet material: | FR4 Tg170 |
| Board thickness: | 1. 2mm |
| Panel size: | 126*118mm/4 |
| Outer copper thickness: | 35μm |
| Inner copper thickness: | 18μm |
| Minimum through hole: | 0. 20mm |
| Minimum blind hole: | 0. 10mm |
| Minimum BGA: | 0. 25mm |
| Line width and spacing: | 2. 8/3. 2mil |
Hot Tags: 10-layer 3-level HDI PCB
