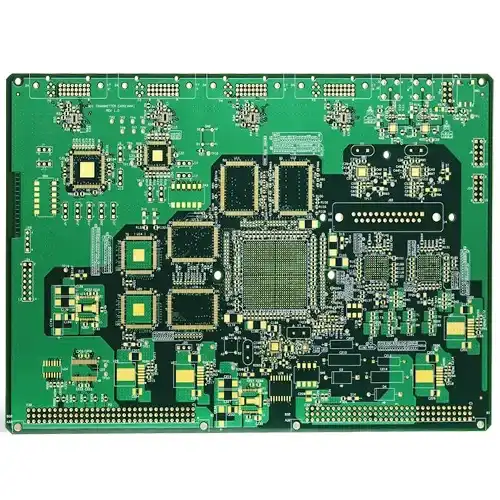

10-layer 1-stage HDI Communication PCB
Viafull as the professional manufacturer, we would like to provide you high quality 10-layer 1-stage HDI Communication PCB. And we will offer you the best after-sale service and timely delivery.
Send Inquiry
Product Description
Technical Features:
50 Ω antenna, 90Ω and 100Ω differential impedance
Applications:
Mobile phones, tablets, ultrabooks, e-readers, MP3 players, GPS, portable game consoles, digital cameras, cameras, LCD TVs, POS terminals
HDI PCBs are widely used to reduce the weight and overall size of products, as well as to improve the electrical performance of devices. High-density PCBs are often found in mobile phones, touch screen devices, laptops, digital cameras, and 4G network communications. HDI PCBs also play an important role in medical devices as well as various electronic aircraft components. The possibilities of high-density interconnect PCB technology seem almost endless.
Data Sheet
| Name: | 10-layer 1-stage HDI communication PCB |
| Number of layers: | 1+8+1 |
| Sheet material: | FR4 Tg170 |
| Board thickness: | 1. 2mm |
| Panel size: | 110. 8*94. 8mm/4 |
| Outer copper thickness: | 35μm |
| Inner copper thickness: | 18μm |
| Minimum through hole: | 0. 20mm |
| Minimum blind hole: | 0. 10mm |
| Minimum BGA: | 0. 20mm |
| Line width and spacing: | 2. 5/2. 2mil |
Hot Tags: 10-layer 1-stage HDI Communication PCB
