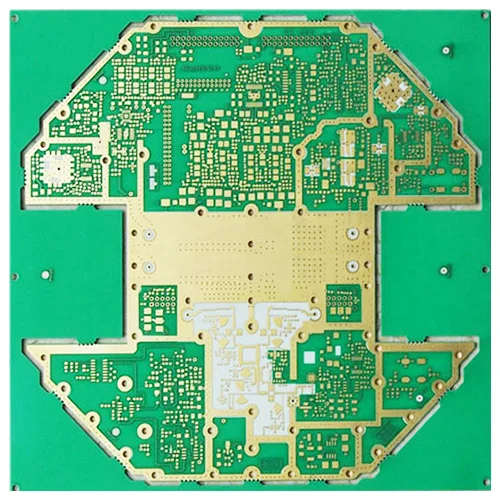

Rogers 4003 PCB

RO4003C laminates are available in multiple configurations with 1080 and 1674 fiberglass styles, all meeting the same laminate electrical performance specifications. RO4003C laminates offer tightly controlled dielectric constants (Dk) and low losses while using the same processing methods as standard epoxy/glass, but at a fraction of the cost of traditional microwave laminates. Unlike PTFE-based microwave materials, no special through-hole treatments or handling procedures are required.

RO4003C materials do not contain bromine and do not meet the UL 94 V-0 rating. For applications or designs that require a UL 94 V-0 flammability rating, RO4835™ and RO4350B™ laminates do meet this requirement.

Features:

Dk of 3. 38 +/- 0. 05

Dissipation factor of 0. 0027 at 10 GHz

Low Z-axis thermal expansion coefficient of 46 ppm/°C
