The Printed Circuit Board (PCB) business has expanded its irresistible favorable influence due to the continuous development of the technological world and its applications in various fields. In recent years, its impact on the electronic world has exceeded all predictions, including IoT devices, smartphones, computers, artificial intelligence, and many more.
Now, PCBs are transforming medical devices and bridging the gap between patients and doctors in the medical technology business. PCBs, have made the development of these convenient medical devices possible. Advancements in healthcare technology are helping to solve several key challenges in the medical field, such as establishing accurate diagnoses and tracking the health of patients.
The medical electronics industry is growing rapidly and there seems to be no sign of slowing down, which shows the influence of PCBs in the medical field. By 2022, the global medical electronics market is expected to reach $4. 4 billion. With the advancement of technology, PCBs are becoming more and more important in the medical field. Due to its digital nature, most of today's medical devices and gadgets require PCBs to work correctly and efficiently.
Medical devices such as defibrillators, electrical muscle stimulation devices, MRI, medical imaging systems, CT scans, and ultrasound equipment require the use of PCBs.
Medical PCB Technologies and Their Types
Medical PCBs must be produced with extreme care to ensure reliability. This is because human lives depend on the devices that house them. PCBs must also meet very stringent requirements when it comes to cleanliness. This is especially true for those used in implants. First, they must be hygienic. They must also be more compact than usual. Therefore, most medical devices use HDI (High Density Interconnect) PCBs.
HDI / via-in-pad technology
The design of inserting vias inside a copper pad is called via-in-pad and is often used to save space on a PCB. With the help of via-in-pad technology, PCBs can provide up to 50% more space for component placement. The extensive use of vias in pads by PCB engineers is in pursuit of more acceptable spacing for devices and smaller electronics.
Other vias, such as blind and buried vias, help reduce space and increase component density, but for PCBs that require high speed and high dissipation, only via-in-pad remains the best choice.
Surface Mount Technology
Surface Mount Technology (SMT) is now used in almost all commercially manufactured devices because it provides tremendous advantages in the PCB manufacturing process and allows more electronics to be packed into a smaller space due to the smaller size of SMT components. In addition to being compact, Surface Mount Technology (SMT) also enables automated soldering and PCB assembly, which improves reliability and saves money.
PCB Fine Lines and Spaces
The next generation of portable electronic devices will rely heavily on high-density interconnect (HDI) PCB technology, including tiny lines and spaces (2 mil and below). This technology offers several advantages over traditional technologies, including reduced board size, enhanced wiring, and reduced manufacturing costs.
Medical PCB Applications in the Medical Industry
Printed circuit boards and electronics play a vital role in the medical industry. They are not only used in electrical appliances, but also in monitoring, diagnostic, and therapeutic equipment. In addition, PCBs in the healthcare industry are rapidly expanding with technological advancements, opening up new possibilities.
Scanning equipment: CT scanners, X-ray screens, and ultrasound scans all rely on electronic components to work.
Monitors: Medical monitoring devices such as heart rate monitors, blood sugar monitors, and blood pressure monitors all contain electronic components.
Medical instruments: Medical research requires a variety of instruments to collect data and test results. PCBs are commonly found in electron microscopes, control systems, compressors, and other equipment.
For health reasons, PCBs must meet higher standards in the medical industry. In addition, these devices must be reliable and of high quality to meet medical requirements. Medical device PCBs are mainly developed and tend to be smaller due to device size restrictions.

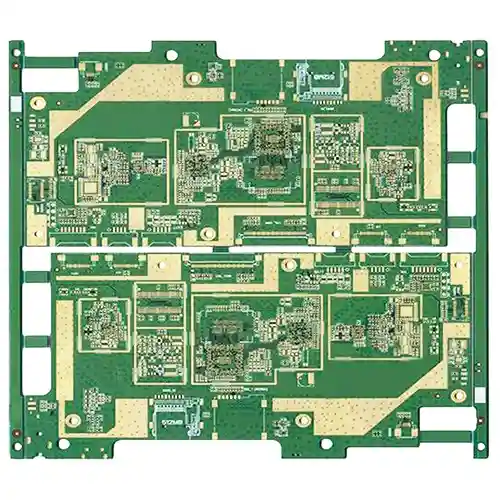

Name: | Medical device PCB |
Base material: | FR4 |
Laminate: | 8L |
Dielectric constant: | 4. 2 |
Sheet thickness: | 1. 6MM |
Outer copper foil thickness: | 1oz |
Inner copper foil thickness: | 1oz |
Minimum aperture: | 0. 2mm |
Minimum line width: | 0. 1MM |
Minimum line spacing: | 0. 1MM |
Gold thickness: | 1U" |
