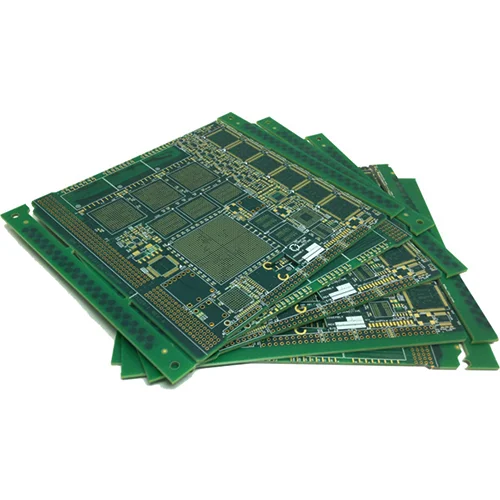

14-layer PCB Circuit Board

14 Layers PCB Stackup has various uses. It is useful in applications like satellite antennas, preamplifiers, memory modules, SAN storage, AC drives, and more. 14 Layers PCB Stackup can be called as a multilayer printed circuit board device and it must be used whenever 8 signal layers are required. Apart from this, 14 Layers PCB Stackup will be required when you need a special shielding made of mesh.

14 Layers PCB Stackup Applications

Nowadays, many industries use 14 Layers PCB stackup for different applications. They have different uses and we can also say that it is useful in various areas of the PCB industry. Here are the areas where 14 Layers PCB stackup is applicable.

Industries

14 Layers PCB stackup is now a household name in different industrial applications. It is useful in control systems and industrial computers. They are also suitable for industrial and manufacturing applications where they are useful for running machinery. This is because of the small size, powerful, and durable nature of 14 Layers PCB stackup.

Electronics

Microwave ovens and smartphones are well-known electronic products that people use regularly. All of these products use printed circuit boards, but more products now prefer to use 14-layer PCB stackups instead of the usual single-layer PCB.

Cars

Headlight switches, onboard computers, GPS, engine sensors use 14-layer PCB stackups. Also, electric vehicles use this stackup in different applications.

Medical Devices

A large number of electronic devices in the healthcare sector use 14-layer PCB stackups. These devices include those used for X-rays, CAT scans, medical tests, and heart monitors.

Telecommunications

Telecommunications devices use 14-layer PCB stackups in many of their common applications. Some of these include GPS, signaling, satellite applications, and more. Outdoor towers or mobile devices often use telecommunication applications that use 14-layer PCB stackups.

Benefits of 14-layer PCB stackups

From a design perspective, 14-layer PCB stackups offer several benefits. These benefits include:

High Quality

There is a lot of work and planning to do before creating a 14-layer PCB stackup. That is why 14 layers PCB stackup has better quality compared to other PCB stackups. They are also more reliable.

Small Size

This PCB stackup is smaller compared to other stackups with similar features. This is due to its layered design. Also, the smaller and more compact size of 14 layers PCB stackup gives it an edge in modern technology.

Increased Power

14 layers PCB stackup integrates multiple layers on one printed circuit board. That is one of the reasons why they offer super fast speeds.

More Durable

With 14 layers PCB stackup, you can easily handle extreme pressure and heat and bear its weight. Here, you can connect the layers with prepreg and other useful materials. In this case, the stackup provides enough insulation. These features make 14 layers PCB stackup more durable.

Flexibility

14 layers PCB stackup uses flexible construction technology. That is what makes your printed circuit board more flexible. You need the flexibility to bend and flex where semi-regular can bend and flex slightly.
