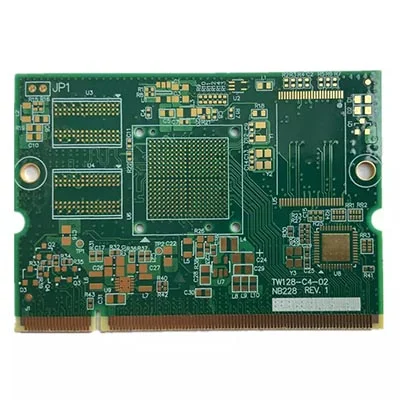

Impedance Controlled Multilayer PCB
You can rest assured to buy Impedance Controlled Multilayer PCB from our factory and we will offer you the best after-sale service and timely delivery.
Send Inquiry
Product Description
The definition of impedance board is: a good layer structure can control the characteristic impedance characteristics of the printed circuit board, and its wiring can form an easily controllable and predictable transmission line structure called impedance board.
Data Sheet
| Name: | Impedance Controlled Multilayer PCB |
| Type: | Multilayer Circuit Board |
| Number of Layers: | 4 |
| Base Material: | FR-4 |
| Copper Thickness: | 1 Ounces |
| Board Thickness: | 1. 6mm |
| Surface Treatment: | Spray Tin |
| Multilayer PCB: | BGA Printed Circuit Board |
| Application: | Air Conditioner |
| Color: | Green Blue Black Red White |
| Test: | High Voltage Test |
