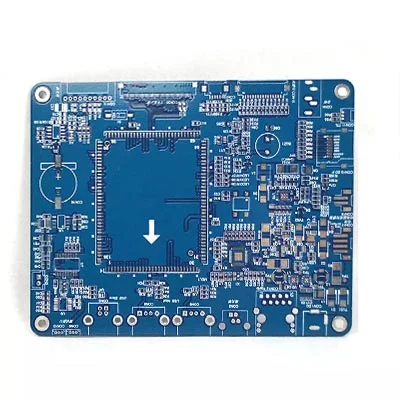

4-Layer Immersion Gold Fr4 Impedance Board
High quality 4-Layer Immersion Gold Fr4 Impedance Board is offered by China manufacturer Viafull. Buy 4-Layer Immersion Gold Fr4 Impedance Board which is of high quality directly with low price.
Send Inquiry
Product Description
The material of the impedance circuit board is TG 150 FR4, with a four-layer structure design and impedance requirements. The copper thickness is 1oz. This circuit board is used in the field of digital equipment.
Data Sheet
| Name: | 4-layer immersion gold FR4 impedance board |
| Base material: | copper, FR4, high TG FR4 |
| Copper thickness: | 0. 5-4 ounces, 0. 5-3 ounces |
| Board thickness: | 0. 2-6mm, 0. 1-4mm |
| Aperture: | T/2mm / 0. 2 mm / 0. 15mm or customized, 0. 2mm |
| Line width: | 0. 15mm/0. 1mm or customized, 0. 075mm |
| Line spacing: | 0. 15mm/0. 1mm/4mil or customized, 0. 075mm |
| Surface treatment: | tin spraying, immersion gold, gold flash, silver plating, OSP, tin spraying, immersion silver, immersion tin, OSP |
| Number of layers: | 8 layers |
