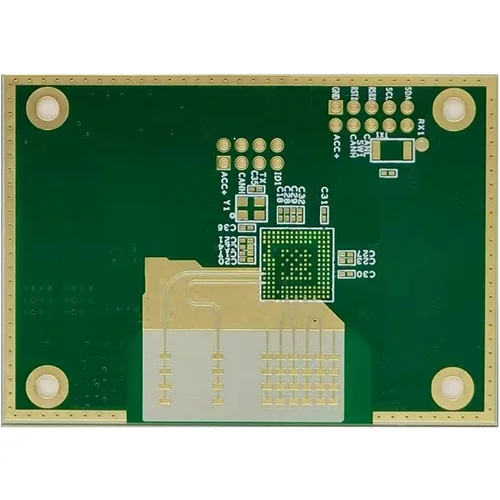

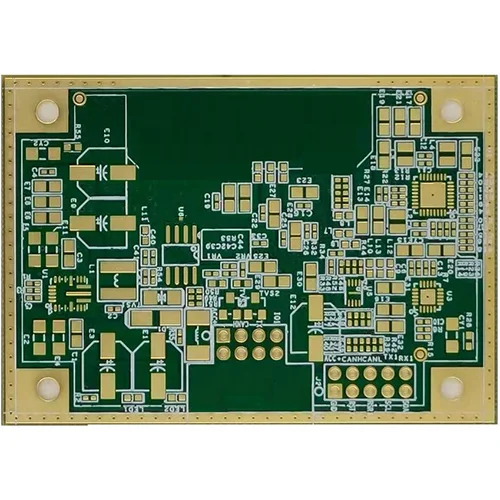

77G Millimeter Wave Radar Board
As one of professional manufacturer, Viafull would like to provide you high quality 77G Millimeter Wave Radar Board. And we will offer you the best after-sale service and timely delivery.
Send Inquiry
Product Description
77Ghz is mainly used for forward warning systems, while 24Ghz is used for rear and side.
Compared with 24Ghz, 77G has a wider detection range, higher accuracy, smaller units, and lower power consumption. Although it provides better performance, the technology is limited to leading companies such as Bosch, Continental, and Defu. Xinjingfu is concentrating on research and development and is about to mass-produce 77G radar systems.
Data Sheet
| Name: | 77G millimeter wave radar board |
| Board: | Rogers RO4835+FR4 |
| Dielectric constant: | High frequency material dielectric constant 3. 48 |
| Dielectric thickness: | 4mil (0. 1mm) |
| Number of layers: | 6 layers |
| Board thickness: | 1. 2mm |
| Copper thickness: | 1oz for inner and outer layers |
| Via: | Resin plug hole |
| Surface process: | Chemical gold immersion |
| Thermal conductivity: | 0. 69w/m. k |
| Loss: | 0. 003 |
