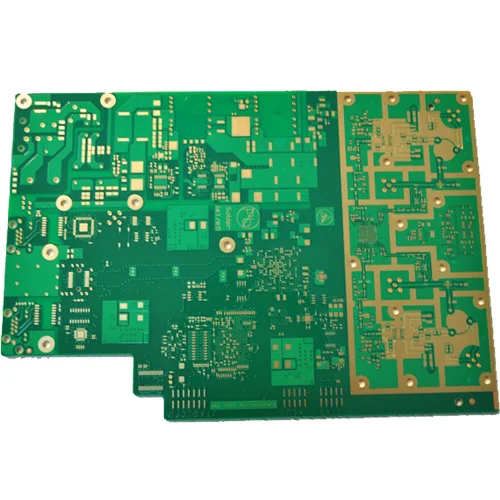

6-layer High Frequency Hybrid Board

If you're searching for the 6-layer High Frequency Hybrid Board at an affordable price, get in touch with us right away! The high-frequency hybrid splint includes a bottom plate, which is folded from bottom to top and placed on the top surface of the first inner line layer, the first outer line layer and the solder mask ink layer. Positioning line layer, second outer line layer, second solder mask ink layer on the bottom of the substrate, the substrate includes a high-frequency zone and an auxiliary zone, the auxiliary zone is fixed last, and the high-frequency zone The frequency zone inlay should be located in a fixed position. The utility model provides a high-frequency hybrid splint, which is divided into two parts: a high-frequency zone and an auxiliary zone. Provide mechanical support. The utility model discloses that the high-frequency zone is independently set, and only the high-frequency zone is made of high-frequency materials. Under the condition of meeting the high-frequency signal, the use of high-frequency board materials is minimized to reduce production costs.

High-frequency hybrid product classification Layers: 6 layers

Use board: Ro4350B+FR4

Thickness: 1. 6mm

Size: 210mm*280mm

Surface treatment: gold plating

Minimum aperture: 0. 25mm

Application: Communication

Features: High-frequency mixed pressure
