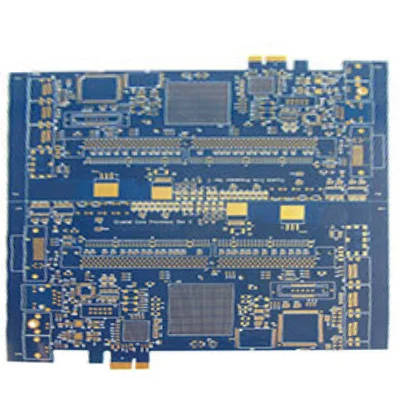

10-layer Immersion Gold PCB
As one of professional high quality 10-layer Immersion Gold PCB manufacturer, you can rest assured to buy 10-layer Immersion Gold PCB from Viafulland we will offer you the best after-sale service and timely delivery.
Send Inquiry
Product Description
The immersion gold board has bright color, good quality, and beautiful appearance;
The crystal structure formed by immersion gold is easier to weld than other surface treatments, and can have better performance and quality assurance;
Because the immersion gold board only has nickel gold on the pad, it will not affect the signal, because the signal transmission in the skin effect is in the copper layer.
The metal properties of gold are relatively stable, the crystal structure is relatively dense, and it is not easy to oxidize.
Because the immersion gold board only has nickel gold on the pad, the solder mask layer on the circuit is more firmly combined with the copper layer, and it is not easy to cause micro short circuits.
The spacing will not be affected during project compensation.
The stress of the immersion gold board is easier to control.
Data Sheet
| Name: | 10-layer immersion gold PCB |
| Number of layers: | 10 layers |
| Material: | FR4 high TG |
| Finished board thickness: | 1. 6mm |
| Finished copper thickness: | immersion gold (ENIG) |
| Finished copper thickness: | 1/1/1/1/1/1/1/1/1/1 ounces |
| Minimum line width: | 3. 5 million |
| Hole wall thickness: | 25um |
